Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-5°C +60°C

Description

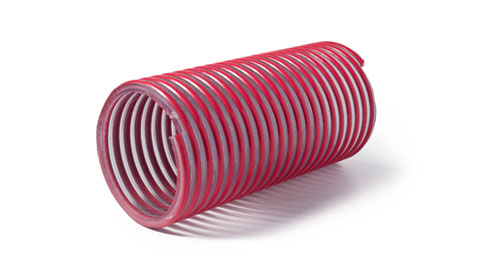

Trasparent soft PVC hose with red hard PVC spiral.

Suitable for delivery and suction of food liquids, wines and alcoholic liquids.

Suitable for contact with food and food liquids Simulant A.B.C and alcoholic liquids up to 20% In compliance with Regulation (EC) No. 1935/2004, Regulation (EC) No. 2023/2006 and Regulation (EU) No. 10/2011 and its successive amendments.

Phthalate FREE.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
587I06302027,5300100824850120080x120
587I06401"2533400125824850120080x120
587I06503039500150721850100080x120
587I06601 1\4"3241550160721850100080x120
587I06703544,560017572185050080x120
587I06801 1\2"384868019072185030080x120
587I0690405075020072185030080x120
587I07001 3\4"455590022572185030080x120
587I07105060,5110025072185030080x120
587I072060711450300618850250110x130
587I07302 1\2"63741550315612850250110x130
587I074070821800350612850250110x130
587I07503"75881900375612850250110x130
587I076080952200400612830180110x130
587I07703 1\2"901052560450612830150110x130
587I07801001173300500612830150110x130
587I07904"1021193400510612830150110x130
587I0800110127,5380055039830150110x130
587I0810120138430072039830120110x130
587I0820125143,5450075039830100110x130
587I08305"127145,5460076239830100110x130
587I0840150171,5660010503982080110x130
587I08506"152173,5670010643982080110x130
587I0860200224103001600--02060110x130

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 12 mm to 20 mm: ± 0.3 mm | from 22 mm to 50 mm: ± 0.5 mm | from 51 mm to 100 mm: ± 1.0 mm | from 102 mm to 150 mm: ± 1.5 mm from 152 mm to 200 mm: ± 2.0 mm | other values: ±5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
