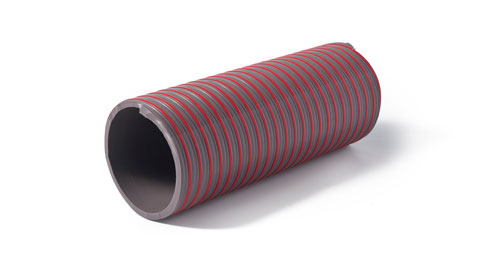

Industrial RED STRIPE Ribbon

Application fields

Agriculture
Industry
Home
Building
Food & beverage

Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-15°C +60°C

Description

Superelastic soft PVC hise with hard PVC spiral.

Suitable for suction and delivery of dirty water and not aggressive liquids.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
587S00301"2540015050120080x120
587S……1 1\4"3255019250120080x120
587S……1 1\2"386802285030080x120
587S……2"5110503065030080x120
587S……60125036050250110x130
587S……2 1\2"63139037850250110x130
587S……3"76170045650250110x130
587S……80185048030180110x130
587S……3 1\2"90225054030150110x130
587S00204"102272061230150110x130
587S……110310077030120110x130
587S……120360084030120110x130
587S……5"1273900101620100110x130
6"152560012162080110x130

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 12 mm to 20 mm: ± 0.3 mm | from 22 mm to 50 mm: ± 0.5 mm | from 51 mm to 100 mm: ± 1.0 mm | from 102 mm to 150 mm: ± 1.5 mm from 152 mm to 200 mm: ± 2.0 mm | other values: ±5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
