Application fields

Agriculture
Industry
Home
Building
Food & beverage

Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-5°C +60°C

Description

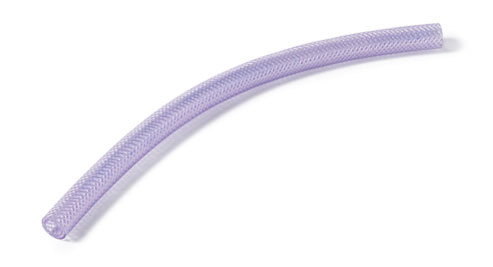

Soft PVC hose with Polyester yarn reinforcement.

Suitable for food liquids.

Suitable for contact with food and food liquids Simulant A.B.C and alcoholic liquids up to 20% In compliance with Regulation (EC) No. 1935/2004, Regulation (EC) No. 2023/2006 and Regulation (EU) No. 10/2011 and its successive amendments.

Phthalate FREE.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
595K15603/16"51195-1545-100300080x120
595K15701/4"612105-1545-100300080x120
595K15805/16"813100-1545-100300080x120
595K15905/16"814125-1545-100300080x120
595K1600915135-1545-100300080x120
595K16101016150-1545-100300080x120
595K16201217140-1030-100300080x120
595K16301/2"1319185-1030-100300080x120
595K16401521210-1030-100200080x120
595K16505/8"1622220-1030-100200080x120
595K16603/4"1926305-1030-50100080x120
595K16707/8"2228290-824-50100080x120
595K16801"2532385-824-5050080x120
595K16903038540-824-3030080x120
595K17001 1/4"3240730-824-3030080x120
595K17103545790-824-3030080x120
595K17201 1/2"3848855-824-3015080x120
595K17304050895824-3015080x120

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 5 mm to 12 mm: ± 0.3 mm | from 13 mm to 19 mm: ± 0.5 mm | from 20 mm to 40 mm: ± 0.8 | other values +- 5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
