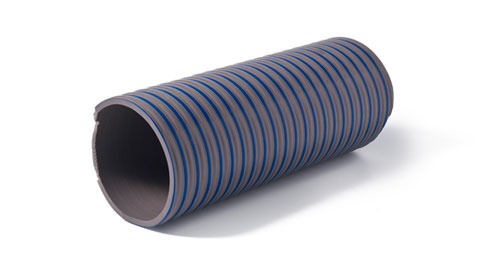

Industrial BLU STRIPE Ribbon

Application fields

Agriculture
Industry
Home
Building
Food & beverage

Features

Flexibility
Crushing resistance
Abrasion resistance
Chemical Resistance

Chemical Resistance Chart

Temperature range

-15°C +60°C

Description

Superelastic soft PVC hise with hard PVC spiral.

Suitable for suction and delivery of dirty water and not aggressive liquids.

Part. no.
Ø ID
inch
Ø ID
mm
Ø OD
mm
Weight
g/m
Bend radius
mm
Work press
bar
Burst press
bar
Vacuum
mH20
Coil lenght
mt
Pallet
mt
Dimension
pallet cm
587S……2"518502305030080x120
587S……3"76150034250250110x130
587S00104"102220045930180110x130
587S……5"127320057220120110x130
587S00406"152440068420100110x130

NOTES:
CHEMICAL RESISTANCE CHART available on TP REFLEX web site.
TEMPERATURE RANGE based on qualified literature; material datasheet or product tests.
WORKING/BURST PRESSURE based on tests performed with water at temperature of 23±2 °C.
DIMENSIONS AND PERFORMANCES referred to a temperature of 23±2 °C; different temperature as well as handling, storage, aging or application conditions can lead to different values.
TOLERANCE: from 12 mm to 20 mm: ± 0.3 mm | from 22 mm to 50 mm: ± 0.5 mm | from 51 mm to 100 mm: ± 1.0 mm | from 102 mm to 150 mm: ± 1.5 mm from 152 mm to 200 mm: ± 2.0 mm | other values: ±5%
TIGHTNESS of hose to be tested after assembly of fittings; the test should be performed in safe conditions.
TP REFLEX sales department is at disposal to evaluate requests concerning product application.
TP REFLEX has the right to modify the elements of this catalogue and declines any responsibility for unlike applications/misapplication of its products.
